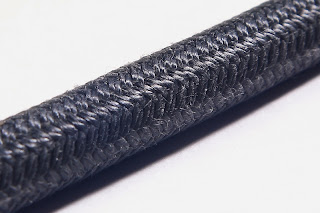

NEW SERIES OF CARBON FIBER BRAIDED HOSES ...
VERY LIGHT BUT EXTREMELY POWERFUL !
Fren Tubo presenta una nuova linea di tubazioni con DOPPIA TRECCIA IN FIBRA DI CARBONIO, appositamente nate per tutte le apparecchiature ad altissime pressioni che devono essere alleggerite al massimo mantenendo inalterate le caratteristiche di sicurezza.
I punti di forza di queste tubazioni sono:
- Peso ridotto
- Ingombro ridotto
- Espansione volumetrica ridotta
P/N A02311-2 T/C 3/16"
Diametro esterno: 7,5 mm.
Pressione di scoppio: 1600 Bar. Pressione di lavoro: 700 Bar. Temp. di utilizzo: -40° +100°
Raggio di curvatura: 30 mm. Peso al metro: 28 gr.
P/N A02312-2 T/C 1/4"
Diametro esterno: 10,2 mm.
Diametro esterno: 10,2 mm.
Pressione di scoppio: 1600 Bar. Pressione di lavoro: 700 Bar. Temp. di utilizzo: -40° +100°
Raggio di curvatura: 40 mm. Peso al metro: 55 gr.
P/N A02313-2 T/C 3/8"
Diametro esterno: 14 mm.
Diametro esterno: 14 mm.
Pressione di scoppio: 1500 Bar. Pressione di lavoro: 500 Bar. Temp. di utilizzo: -40° +100°
Raggio di curvatura: 50 mm. Peso al metro: 112 gr.
P/N A02315-2 T/C 1/2"
Diametro esterno: 18 mm.
Pressione di scoppio: 1200 Bar. Pressione di lavoro: 400 Bar. Temp. di utilizzo: -40° +100°
Raggio di curvatura: 75 mm. Peso al metro: 135 gr.
-------------------------------------------------------------------------------------
Fren Tubo presents a new series of hoses with DOUBLE CARBON FIBER BRAIDING.
They have been created especially for the high pressure equipments which must be lightened by maintaining unchanged various security characteristics.
Main advantages of these hoses are:
- Less weight
- More compact
- Reduced volumetric expansion
P/N A02311-2 T/C 3/16”
Outside diameter: 7,5 mm.
Fren Tubo presents a new series of hoses with DOUBLE CARBON FIBER BRAIDING.
They have been created especially for the high pressure equipments which must be lightened by maintaining unchanged various security characteristics.
Main advantages of these hoses are:
- Less weight
- More compact
- Reduced volumetric expansion
P/N A02311-2 T/C 3/16”
Outside diameter: 7,5 mm.
Bursting pressure: 1600 Bar. Working pressure: 700 Bar. Working temperature: -40° +100°
Radius of curvature: 30 mm. Weight per meter: 28 gr.
P/N A02312-2 T/C 1/4”
Outside diameter: 10,2 mm.
Radius of curvature: 30 mm. Weight per meter: 28 gr.
P/N A02312-2 T/C 1/4”
Outside diameter: 10,2 mm.
Bursting pressure: 1600 Bar. Working pressure: 700 Bar. Working temperature: -40° +100°
Radius of curvature: 40 mm. Weight per meter: 55 gr.
Radius of curvature: 40 mm. Weight per meter: 55 gr.
P/N A02313-2 T/C 3/8”
Outside diameter: 14 mm.
Outside diameter: 14 mm.
Bursting pressure: 1500 Bar. Working pressure: 500 Bar. Working temperature: -40° +100°
Radius of curvature: 50 mm. Weight per meter: 112 gr.
Radius of curvature: 50 mm. Weight per meter: 112 gr.
P/N A02315-2 T/C 1/2"
Outside diameter: 18 mm.
Bursting pressure: 1200 Bar. Working pressure: 400 Bar. Working temperature: -40° +100°
Radius of curvature: 75 mm. Weight per meter: 135 gr.
In abbinamento sono disponibili I RACCORDI IN ACCIAIO INOSSIDABILE AISI 316 o IN TITANIO GRADO 5 (ISO 5832-3 ASTM F-136:) e più precisamente:Per il tubo A02311-2 T/C
B15214/SS 316 Femmina diritta 7/16" Mat. : Inox AISI 316 Peso: 26 gr.
B15214/TI Femmina diritta 7/16" Mat. : Titanio. Boccola Inox. Peso: 12,5 gr.
Per il tubo A02312-2 T/C
B15954/SS 316 Femmina diritta 7/16" Mat. : Inox AISI 316 Peso: 28 gr.
B15954/TI Femmina diritta 7/16" Mat. : Titanio. Boccola Inox. Peso: 16 gr.
Per il tubo A02313-2 T/C
B15807/SS 316 Femmina 9/16" 18 UNF Mat. : Inox AISI 316 Peso: 51 gr.
B15807/TI Femmina 9/16" 18 UNF Mat. : Titanio. Boccola Inox. Peso: 26 gr.
Per il tubo A02315-2 T/C
B15900/SS 316 Femmina 3/4" 16 UNF Mat.: Inox AISI 316 Peso non disp.
B15900/TI Femmina 3/4" 16 UNF Mat.:Titanio. Boccola Inox. Peso: 91 gr.
--------------------------------------------------------------------------------
The specific fittings to be used with these hoses are made in AISI 316 STAINLESS STEEL or in TITANIUM GRADE 5 (ISO 5832-3 ASTM F-136), and are more precisely as follows:
For the hose A02311-2 T/C
P/N B15214/SS 316
Description: 7/16” straight female fitting
Material: AISI 316 stainless steel
Weight: 26 gr.
P/N B15214/TI
Description: 7/16” straight female fitting
Material: Titanium
For the hose A02311-2 T/C
P/N B15214/SS 316
Description: 7/16” straight female fitting
Material: AISI 316 stainless steel
Weight: 26 gr.
P/N B15214/TI
Description: 7/16” straight female fitting
Material: Titanium
Stainless Steel bushings
Weight: 12.5 gr.
For the hose A02312-2 T/C
P/N B15954/SS 316
Description: 7/16” straight female fitting
Material: AISI 316 stainless steel
Weight: 28 gr.
P/N B15954/TI
Description: 7/16” straight female fitting
Material: Titanium
Stainless Steel bushings
For the hose A02312-2 T/C
P/N B15954/SS 316
Description: 7/16” straight female fitting
Material: AISI 316 stainless steel
Weight: 28 gr.
P/N B15954/TI
Description: 7/16” straight female fitting
Material: Titanium
Stainless Steel bushings
Weight: 16 gr.
For the hose A02313-2 T/C
P/N B15807/SS 316
Description: 9/16” 18 UNF female fitting
Material: AISI 316 stainless steel
Weight: 51 gr.
P/N B15807/TI
Description: 9/16” 18 UNF female fitting
Material: Titanium
Stainless steel bushings
For the hose A02313-2 T/C
P/N B15807/SS 316
Description: 9/16” 18 UNF female fitting
Material: AISI 316 stainless steel
Weight: 51 gr.
P/N B15807/TI
Description: 9/16” 18 UNF female fitting
Material: Titanium
Stainless steel bushings
Weight: 26 gr.
For the hose A02315-2 T/C
P/N B15900/SS 316
Description: 3/4" 16 UNF female fitting
Material: AISI 316 stainless steel
Weight: n/a
P/N B15900/TI
P/N B15900/TI
Description:3/4" 16 UNF female fitting
Material: Titanium
Stainless steel bushings
Weight: 91 gr.
